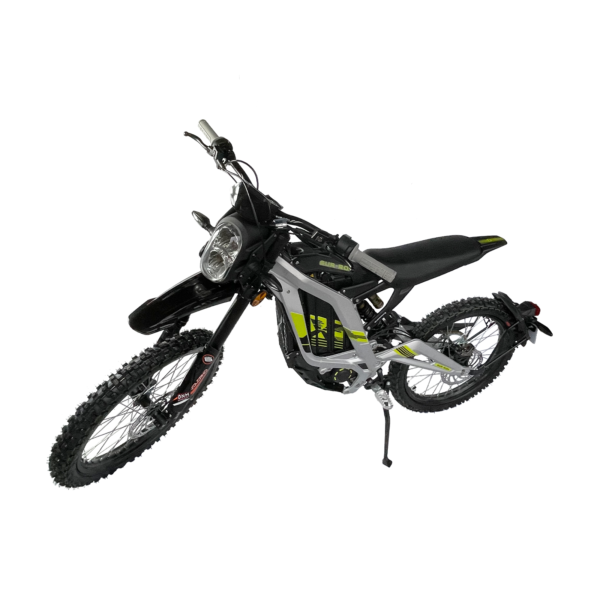

Surron Light Bee L1E -ADR version

From $7,999.00

DISCLAIMER AROUND SPEED AND RANGE
THE PRODUCT WAS TESTED FULLY CHARGED, WITH AN AVERAGE LOAD OF 75KG-85KG, AT A NORMAL TEMPERATURE ON A NORMAL PAVED ROAD BETWEEN THE SPEEDS OF 0-25KM/H. THE RESULTS MAY VARY BASED ON DIFFERENCES IN TEMPERATURE, LOAD, WIND SPEED, ROAD CONDITIONS AND OTHER FACTORS.

PLEASE NOTE:
EACH STATE AND TERRITORY IN AUSTRALIA HAS A DIFFERENT SET OF RULES AND REGULATIONS PERTAINING TO THE USAGE OF E-SCOOTERS, E-BIKES AND E-BOARDS (INCLUDING WHERE E-SCOOTERS, E-BIKES AND E-BOARDS CAN LEGALLY BE USED AND WHETHER E-SCOOTERS, E-BIKES AND E-BOARDS NEED TO BE REGISTERED WITH THE RELEVANT ROAD TRAFFIC AUTHORITY).  ANY USER OF THIS PRODUCT MUST ENSURE THAT THAT THEY CHECK AND ABIDE BY THEIR LOCAL BY-LAWS AND USE RESPONSIBLY.  RIDE WITH CAUTION AND ALWAYS WEAR A HELMET AND PROTECTIVE GEAR WHEN RIDING YOUR E-SCOOTER, E-BIKE AND E-BOARD. BEFORE RIDING YOUR E-BIKE, E-SCOOTER AND E-BOARD ENSURE THE BOLTS ARE TIGHT AND THE BATTERY IS CHARGED.

CAUTION:
DANGER MAY OCCUR WHEN THE KICKSTAND IS ACCIDENTALLY KNOCKED DOWN OR CATCHES OBJECTS IN COMPLEX TERRAINS.
DISMOUNT YOUR KICKSTAND BEFORE TRAIL RIDING!

Please Note: Each state and territory in Australia has a different set of rules and regulations pertaining to the usage of e-scooters, e-bikes and e-boards (including where e-scooters, e-bikes and e-boards can legally be used and whether e-scooters, e-bikes and e-boards need to be registered with the relevant road traffic authority). Any user of this product must ensure that that they check and abide by their local by-laws and use responsibly. Ride with caution and always wear a helmet and protective gear when riding your e-scooter or e-bike.

Surron Light Bee L1E -ADR version is a unique modern day vehicle encompassing a fusion of a downhill mountain bike, off road motorcycle and electric e-bike. It’s an incredibly unique design made that is lightweight (at only 50kgs), powerful, easy to use, fun and free to customise.

Specs

Dimensions: 1860mm*780mm*1050mm

Grounded clearance: 270mm

Wheel base: 1230mm

Seat height: 802mm

Dry/Curb weight: 47kg/58kg

Carrying capacity: 100kg

Front fork travel: 200mm

Rear shock/wheel travel: 87/210mm

Power system: Mid-drive BLDC motor + FOC sine wave controller

Rated power: 2040W

Maximum torque: 250N.m

Top speed: 45km/h

Range: 60km

Battery type: 60V/32Ah lithium-ion removable battery pack

Charge time: 3-4h

Frame design: Aluminium forged frame

Front tyre: 70/100-19

Rear tyre: 70/100-19

Riding mode: Sports + Eco mode

Assistance functions: Regen (on Sports Mode)

Colour

Black, Blue, Silver

How to assemble the Sur-Ron Light Bee?

Please watch our unboxing video for better understanding.

What should I pay attention to before riding after assembled?

Please fully charge it first before open the air switch, check the tire pressure (25-32PSI is recommended) and all self-installed screws need to be fastened. Remember to wear a helmet and other protective gears. Lastly, please follow local government traffic rules and regulations.

How do I charge the Sur-Ron Light Bee? What should I be aware of?

The power supply requirements are marked on the charger, please operate in strict accordance with the steps in the manual.

How do I clean the Sur-Ron Light Bee?

Do not use a high-pressure water gun to clean the vehicle. Please avoid the water flow to directly wash the installation position of the plug and wire while washing the car. Also, avoid directly washing the bearing and other rotating parts of the gap.

How do I maintain the Sur-Ron Light Bee?

Please check tyre condition and air pressure regularly. Making sure the wear degree of brake pads and discs is in working condition, and make sure the chain has sufficient lubrication to function properly. It is recommended to send it to the dealer for a comprehensive inspection at least every six months.

Can I take a road trip in Sur-Ron Light Bee? How far can I go on a single charge?

Please make sure the total mileage is within the range of the vehicle and start to consider returning when 60% of the battery is left. If you keep riding at 20km/h, you can ride about 120KM (the most ideal state). Excessive altitude climbs and excessive sudden acceleration will speed up battery consumption. Insufficient air pressure, lack of maintenance of the car, and high or low ambient temperature will affect the battery life as well. It is recommended to ride a few times in your riding style within your area before travel in a longer distance and estimate the cruising range under the same conditions through the consumption of electricity.

How do I get more distance with Sur-Ron Light Bee?

Sur-Ron light bee can ride the farthest at a speed of 20km/h. Maintain light acceleration and a low average speed to maximise cruising range.

Can Sur-Ron Light Bee ride through water?

Sur-Ron light bee has a certain waterproof ability when it is designed. It is recommended that the wading depth should not exceed the motor, and the chain and bearings should be maintained in time after riding in water.

How many safety features does Sur-Ron Light Bee have?

Brake power-off protection, tipping power-off protection, side bracket power-off protection, over-current protection, over-voltage protection, over-temperature protection, over-discharge protection, over-charge protection, locked-rotor protection, steering wheel speed protection.

How do I turn the light off on Sur-Ron Light Bee?

Due to regulatory requirements, the lights have no on/off switch and are always on. Regards to the overall power consumption is very low and it can be ignored.

How do you turn off the brake sensor on a Sur-Ron Light Bee?

Due to regulatory requirements, It is not recommended to turn off.

What temperature is recommended to ride Sur-Ron Light Bee?

It is recommended to use it in the range of 0 degrees above and below 40 degrees. Too high or too low is easy to damage the battery or activate the protection function.

How long does a primary drive belt last?

The original manufacturing belt can be used for more than 15,000 kilometres under ideal conditions. Considering the unpredictability of the usage scenario, it is recommended to check every 500 kilometres and replace it every year. In the case of more off-road use, check each time and replace it every six months.

How long should the chain last and when should I replace the chain?

With regular maintenance and lubrication, the chain has a longer service life. The chain will gradually become loose with the wear and tear during use, it is necessary to adjust the position of the rear wheel to adjust the tension of the chain, and keep the top and bottom free range of the chain at 1-2 cm. It is recommended to replace it every 10,000 kilometres.

Can Sur-Ron Light Bee X and Light Bee S share the same battery?

The power system design of the two models are different, and it is strictly forbidden to use different types of batteries.

What kind of front fork and rear shock setup can I use for Sur-Ron Light Bee?

The original manufactured front fork has the same specifications as the straight-tube front fork used in downhill mountain bikes. The length of the rear shock absorber is 267 mm, and the size of the bushing is 24*8 mm. The original shock absorber has a special modification, please make sure to fully understand the risks brought by the modification if you are going to modify it yourself.

What kind of suspension setup can I use for Sur-Ron Light Bee?

Compatible with four-piston brakes of downhill bike specifications, the original manufacturing brakes have a special modification. Please be cautious while planning for modification.

Handle grips that recommended for Sur-Ron Light Bee?

The original manufactured handlebars use a 31.8mm mounting specification. Please do not use a handlebar that is lower than the strength of a downhill bike.

What are the tyre sizes option can I use for Sur-Ron Light Bee?

The original manufactured tyre size is 70/100*19 and is a customised specification tire. Replacing other tyres may affect the performance.

What kind of head lights can I use for Sur-Ron Light Bee?

The power supply of the original lamp is 12V30W. Please do not exceed this specification as it will damage the original cable.

What parts of Sur-Ron Light Bee are fixed permanently and could not be changed?

The original manufactured frame, power system, battery, controller, and motor are strictly prohibited to be modified. Any related modification will automatically waive the manufacturer’s warranty, any risks shall be borne by the user.

The instrument lights of Sur-Ron Light Bee are working, it does not able to move (Please have a look at the inspection and maintenance manual guide for details)

It is recommended to be tested by an official distributor.

Turned on the key, the instrument lights of the Sur-Ron Light Bee are not working and it does not able to move (Please have a look at the inspection and maintenance manual guide for details)

It is recommended to be tested by an official distributor.

No response when plugged in the charger.

First check whether the power supply is working fine and whether the voltage matches the charger. If the charger is not faulty, the battery may need to be activated. Please refer to the battery activation guide. If it still not working, please contact the distributor.

The battery has been charged for a long time and it is not fully charged.

Either the charger or the battery is faulty. Please contact the distributor.

Dealing with brake noise.

Please check the condition of the brake pads and discs. If they need to be replaced, please replace them in time. Also, please check if the installation position of the callipers is centred, and make sure there are no foreign objects stuck on the brake pads, check whether the discs are deformed, and making sure the discs and brake pads are not stained with oil. Please contact the distributor if is not the case.

Increases brake force.

Please check the condition of the brake pads and discs. If they need to be replaced, please replace them in time. Also, please check if the installation position of the callipers is centred, and make sure there are no foreign objects stuck on the brake pads, check whether the discs are deformed, and making sure the discs and brake pads are not stained with oil. Please contact the distributor if is not the case.

Excessive pedal effort, brake react properly. While slow pedal effort, it feels like have no reserve left.

Please contact distributor immediately. Possibly oil leaking inside the brake pump.

The grip of the tyre decreased.

Please check the wear condition of the tyres. If the tyres wear for too long, the rubber will be aged and It is recommended to replace the tyres after one year regardless of whether they are used or not. Excessive air pressure will also lead to a decrease in grip, please ensure that the air pressure is in the appropriate range (25-32PSI), different ground conditions and temperatures will also affect the friction of the tyres.

Wheels vibrating or rattling.

Please check if the spokes are loosened and if the axle is locked as specified. Also, please check bearings condition.

It does not start despite the switch being on.

Please check the condition of the belt, it might be the timing teeth of the belt are damaged or the belt is broken.

Chain loosen and make grinding noise.

Please adjust the tension of the chain properly to ensure that the free range of the chain is 1-2 cm length.

Chain makes rattling noise.

Please make sure the chain is properly lubricated and inspect each link for deformation or damage.

Broken spokes.

Please replace damaged spokes and have them re-adjusted by a professional.

Front Suspension Fork too stiff.

Please make sure that the sides of the fork are parallel. Loosen spring preload, turn down compression damping.

Back Suspension Fork too stiff.

Please make sure that the rear shock linkage pivot is smooth and spring preload is loosen, but not causing the spring to loosen. Also, turn down the compression damping.

Shock absorbers make noise.

Please check if there is foreign object on the exterior part. If the sound comes from the shock absorber itself, please contact the distributor.

There are apparent oil stains on the surface of the shock absorber.

After making sure there is no other source of oil stains, please contact the distributor regards to the issue. Please note that it is normal for a thin oil film on the shock absorber inner tube.

Strange vibration while riding

Please check if the battery support base is damaged, the front support plate of the battery compartment is deformed, the battery compartment cover is damaged, or the rubber spacer is missing or displaced. After making sure everything is working perfectly fine, you can add a sponge pad of appropriate thickness to the bottom of the battery to ensure that there is enough pre-pressure on the battery when the battery compartment cover is locked.

What to do after crash riding?

Please turn off the power and check if that the front fork legs are parallel, if the handlebars are aligned or deformed, if the angle of the brake handle has changed, if the brake functions are normal, if the brake disc and chain plate are deformed and if the pedals and the bracket is damaged or deformed. Also, please check if the accelerator handle is damaged or smooth. Lastly, turn on the key to check if the vehicle is working properly.

Bike forks loosen.

Please loosen all the front fork’s screws, then loosen screws on the side of the handlebar, and tighten the screws of the upper cover to ensure that there is no obvious resistance to turn the handle, and then lock the middle of the upper connecting plate’s large screw, then tighten all the fastening screws.

How do you fix a weak brake?

Please stop using the vehicle immediately. Check the condition of the brake pads and discs, and check if the brake fluid leaks. Please contact the distributor about the issue as soon as possible.

Accelerator not working.

Please check if the accelerator position is too far in and it is causing friction between the accelerator and the handlebar, also check whether there is any foreign objects between the accelerator and the handlebar.

GPS Connection Failure

Please check the GPS power supply and the GPS internal IoT card is overdrawn.
