The Surron Storm Bee F (Off Road) has a 105km range, 90V/48AH-SONY VTC battery cell, 110km/h top speed and a 22.5KW maximum output power.
Wheel base: 1430mm
Carrying capacity: 120kg
Front fork travel: 290mm
Rear shock/wheel travel: 115/290mm
Power system: Mid-drive BLDC motor + FOC sine wave controller
Rated power: 10KW
Maximum power: 22.5KW
Maximum torque: 520N.m
Top speed: 110km/h
Range: 100km (@50km/h)
Battery type: 90V/48Ah lithium-ion removable battery pack
Charge time: 4h

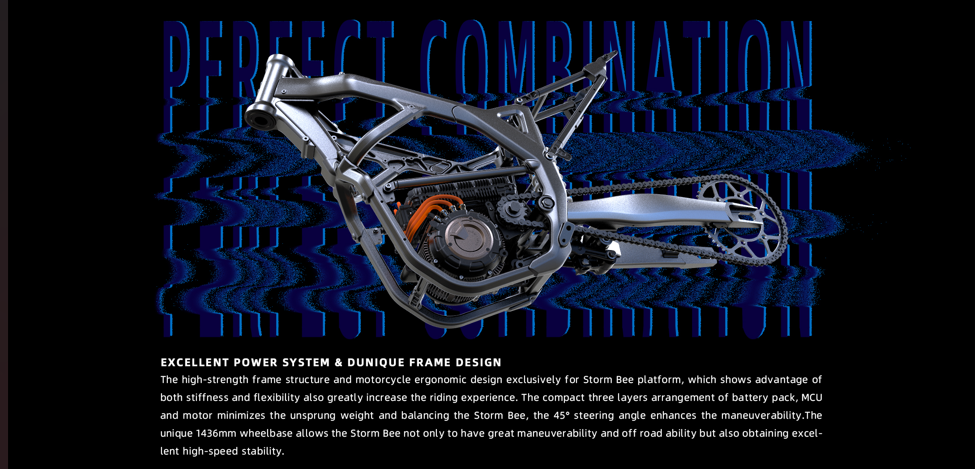

Frame design: Aluminium forged frame
Riding mode: Eco/Rain/Sports mode + 'Turbo' mode
Ground clearance: 335mm
Seat height: 940mm
Dry/Curb weight: 95kg/127kg
Front tyre: 80/100-21 off road tyre
Rear tyre: 100/90-18 off road tyre
Assistance functions: ASR+BERS
Please Note: Each state and territory in Australia has a different set of rules and regulations pertaining to the usage of e-scooters, e-bikes and e-boards (including where e-scooters, e-bikes and e-boards can legally be used and whether e-scooters, e-bikes and e-boards need to be registered with the relevant road traffic authority). Any user of this product must ensure that that they check and abide by their local by-laws and use responsibly. Ride with caution and always wear a helmet and protective gear when riding your e-scooter, e-bike and e-board. Before riding your e-bike, e-scooter and e-board ensure the bolts are tight and the battery is charged.
Insert the key in the ignition of the vehicle and the vehicle does not start?
Check if the flameout switch is on, whether the foot support is folded, and whether the ‘READY’ light is activated by pinching the brake.
The rear traction of the vehicle when coasting is not suitable?
The number of E can be set in the instrument, 0-5, a total of 6 sliding power recovery levels.
Inappropriate electronic assisted braking force while braking?
You can set the number of B in the meter, 0-5, a total of 6 brake assist strength levels.
Turn on and off the brake power function?
The number of P can be set in the meter, 0 and 1 can be turn on and off.
The vehicle loses power after a big jump, and it is normal after restarting?
The cut-off switch was accidentally activated. If there are frequent large shocks in the riding road conditions, you can set C in the meter to 0. When is set to 0, there may be a risk of injury in this circumstances.
Appearance of meter error code?
Find out the cause of the failure according to the instruction manual, and please contact the distributor in time.
Reduced braking effort?
Please stop using it and contact the distributor immediately.
There are differences between the power display of the meter and the advertised battery life?
The advertised cruising distance is tested under ideal conditions, any deviation from the test conditions may result in a change in the cruising range.
Water cooling system not function properly?
When the hardware is in normal condition and the temperature of the controller does not reach the programmed condition, the water cooling system will not working.
Why can’t the chain of the Storm Bee be as tight as the Light Bee?
The design of the rear flat forks of the two vehicles is different. The chain of the Storm Bee must maintain a certain degree of relaxation before it can be used normally. Please strictly follow the instruction manual for adjustment requirements.
Storm Bee brakes have been grinding the brake discs, is that normal?
Because of the braking system of the Storm Bee, there is only a very small gap or slight friction between the brake pad and the brake disc. If the wheel is floating in the air, rotate the wheel by hand, and there is no obvious resistance, and it is normal. When testing the rear wheel, pay attention to eliminate the interference of the chain.
After the ASR is activated, the tyre does not slip, but this function intervenes?
Please check the code disc if there are any damage or foreign objects caught in it. Check whether if the tyre pressure is too large between the front and rear tyres, and adjust the tyre pressure according to the instructions. If the tyre is replaced, pay attention if whether the outer diameter of the replaced tyre is different from the outer diameter of the original tyre, and match the wheel set according to the official data. Note that the marked size of some tyres is different from the actual size tyres.
Coasting power recovery and brake assist do not work after full charge?
In a fully charged condition, in order to protect the battery, the program automatically turns off these two functions. When the power drops to a certain level, the function will automatically resume.
Does the gearbox lubricant oil need to be changed regularly?
Please refer to the instruction manual guide book.
Does the battery need to be fully charged frequently?
Under this conditions, it is best to fully charge the battery each time and wait for the charger to stop automatically. If the vehicle is not used for a long time, it is necessary to charge the battery to 80% of the battery regularly (the battery can be charged and stored when the battery is less than 20%), to avoid permanent damage caused by over-charge.
Can I use a high-pressure water gun to wash the Storm Bee?
It is not recommended to use a high-pressure water gun to rinse, please use a conventional water-pressure shower, combined with a brush, a rag, and a neutral cleaning liquid to clean the vehicle.Note that the chain should be lubricated immediately after cleaning and drying.
